% Packing Volume

Begin by selecting a manufacturer to show available products

Help Video
Coil Comparison Chart

Manufacturer

OD (in)

Length (cm)

Volume (mm³)

% Packing Volume

Codman Neurovascular - www.depuy.com/about-depuy/depuy-divisions/codman-and-shurtleff

Orbit Galaxy™
Orbit Galaxy™ Frame (6-20mm)	0.0140	0 %
Orbit Galaxy™ Fill (2-12mm)	0.0120	0 %
Orbit Galaxy™ Xtrasoft™ (2-4mm)	0.0120	0 %
Trufill DCS Orbit® (Brochure)
Orbit Complex Standard (6-20mm)	0.0120	0 %
Orbit Complex Fill (2-12mm)	0.0120	0 %
Orbit Helical Fill (2-12mm)	0.0120	0 %

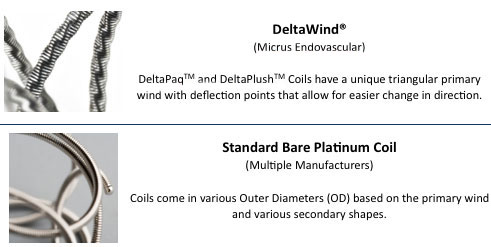

DeltaWind (Brochure)
Deltapaq™ 10 (Brochure)	0.0105	0 %
DeltaPlush™ 10 (Brochure)	0.0100	0 %
Presidio™ (Brochure)
Presidio™ 18	0.0150	0 %
Presidio™ 10	0.0105	0 %
Cashmere™ (Brochure)
Cashmere™ 14	0.0135	0 %
Micrusphere® (Brochure)
Micrusphere® 18	0.0150	0 %
Micrusphere® 10	0.0100	0 %
Helipaq® (Brochure)
Helipaq® 18	0.0140	0 %
Helipaq® 10	0.0100	0 %
Ultipaq®
Ultipaq® 10 (Brochure)	0.0100	0 %
Coils also available in Cerecyte® (Brochure)

MicroVention - www.microvention.com

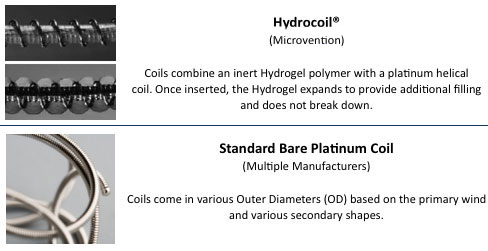

Hydrogel Products
HydroCoil® 18	0.0340	0 %
HydroCoil® 14	0.0270	0 %
HydroCoil® 10	0.0220	0 %
HydroSoft® 10	0.0130	0 %
HydroFrame® 18 (18-20 mm)	0.0150	0 %
HydroFrame® 18 (16 mm)	0.0145	0 %
HydroFrame® 18 (11-14 mm)	0.0148	0 %
HydroFrame® 18 (9-10 mm)	0.0145	0 %
HydroFrame® 18 (6-8 mm)	0.0140	0 %
HydroFrame® 10 (5-8 mm)	0.0125	0 %
HydroFrame® 10 (3-4 mm)	0.0120	0 %
Cosmos™
Cosmos™ 18 (20-24 mm)	0.0150	0 %
Cosmos™ 18 (16-18 mm)	0.0145	0 %
Cosmos™ 18 (11-14 mm)	0.0140	0 %
Cosmos™ 18 (8-10 mm)	0.0148	0 %
Cosmos™ 18 (6-7 mm)	0.0145	0 %
Cosmos™ 10 (7-10 mm)	0.0110	0 %
Cosmos™ 10 (3-6 mm)	0.0120	0 %
Complex
Complex 18 (18-20mm)	0.0150	0 %
Complex 18 (13-16 mm)	0.0145	0 %
Complex 18 (5-12 mm)	0.0140	0 %
Complex 18 (4 mm)	0.0135	0 %
Complex 10 (4-10 mm)	0.0100	0 %
Complex 10 (2-3 mm)	0.0095	0 %
Compass™
Compass™ 18 (18-20 mm)	0.0150	0 %
Compass™ 18 (13-16 mm)	0.0145	0 %
Compass™ 18 (6-12 mm)	0.0140	0 %
Compass™ 18 (4-5 mm)	0.0135	0 %
Compass™ 10 (6-10 mm)	0.0100	0 %
Compass™ 10 (4-5 mm)	0.0095	0 %
Compass™ 10 (2-3.5mm)	0.0085	0 %
Helical
Helical Regular 18	0.0140	0 %
Helical Soft 18	0.0135	0 %
Helical Regular 10	0.0100	0 %
Helical Soft 10	0.0095	0 %
HyperSoft™
HyperSoft™ 10 (4-6 mm)	0.0110	0 %
HyperSoft™ 10 (1.5-3mm)	0.0100	0 %

ev3 Neurovascular - www.ev3.net

Stryker Neurovascular - www.stryker.com/neurovascular

Target® Detachable Coils
360 Standard (11-15 mm)	0.0120	0 %
360 Standard (6-10 mm)	0.0110	0 %
360 Standard (3-5 mm)	0.0100	0 %
360 Soft (6-14 mm)	0.0100	0 %
360 Soft (2-5 mm)	0.0095	0 %
360 Ultra and Helical Ultra	0.0100	0 %
GDC® Detachable Coils
18 Standard, 360, 2D and 3D (10-20mm)	0.0150	0 %
18 3D (8 mm)	0.0145	0 %
18 3D (6 mm)	0.0140	0 %
18 Soft	0.0135	0 %
10 360 Standard SR (11-15 mm)	0.0120	0 %
10 360 Standard SR (6-10 mm)	0.0110	0 %
10 360 Standard SR (3-5 mm) and 360 Soft SR (6-14 mm)	0.0100	0 %
10 Standard, 2D, 3D and UltraSoft®	0.0100	0 %
10 Soft (2D and SR) and 360 Soft SR (2-5 mm)	0.0095	0 %

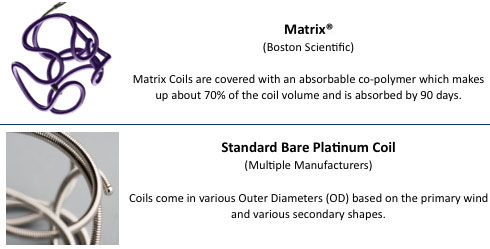

Matrix²® Detachable Coils
Standard (2D, 3D and 360) and 3D Firm	0.0120	0 %
2D Firm and 360 Firm (5-14 mm)	0.0120	0 %
2D Firm and 360 Firm (16-24 mm)	0.0118	0 %
Soft (2D, 360 and Helical)	0.0115	0 %
360 and Helical UltraSoft SR	0.0110	0 %

Penumbra - www.penumbrainc.com

		Coil Length Total:	(cm)
		Coil Volume Subtotal	(mm³)
		Aneurysm Volume:	(mm³)
		Percent Packing Volume:	0 %

Coil volume is determined using the formula for a cylinder. While most coils have a circular primary wind, there are slight variations which the outer diameters provided by the manufacturers reflects. Please see Background for more details.

Penumbra Coil 400 Complex Standard (3-24 mm) (Brochure)	0.020			0 %
Penumbra Coil 400 Complex Soft (3-24 mm)	0.020			0 %
Penumbra Coil 400 J Soft	0.020			0 %
Penumbra Coil 400 Curve Extra Soft (2-4 mm)	0.020			0 %

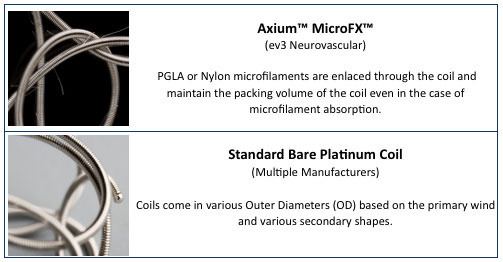

Axium™ (12-25 mm) (Brochure)	0.0145			0 %
Axium™ (Bare/PGLA) (7-10 mm)	0.0135			0 %
Axium™ (Bare/PGLA/Nylon) (4-6 mm) (Brochure)	0.0125			0 %
Axium™ (Bare/PGLA/Nylon) (2-3 mm)	0.0115			0 %
Nexus™	0.0100			0 %
